Ruggedized Backplane Cable Assemblies

Achieve low-loss, high-speed data transfer between commercial backplanes or servers to COTS and equivalent MIL-SPEC connectors with custom Ruggedized Backplane Cable Assemblies

Molex provides state-of-the-art backplane connectors cabled to virtually any I/O requirement you may need. Solutions include backplane connectors, commercial-off-the-shelf (COTS) connectors or full military-qualified interfaces — all terminated to custom cable assemblies. Data throughput for these products range from 2 to 25 Gbps, depending on configurations.

The backplane cables reduce high transmission losses caused by long trace lengths on traditional PCBs. These assemblies allow for low-loss, high-speed data transfer from commercially available backplane connectors to the panel or server board interface.

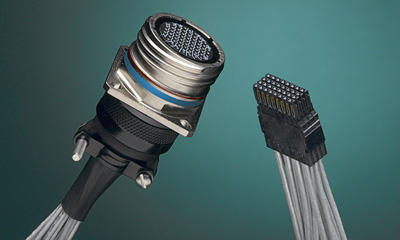

Backplane interfaces (Impact, Impel, VHDM® and others upon request) cabled to ruggedized connectors such as custom, commercial-off-the-shelf (COTS) connectors or full military-qualified connectors (D38999, Micro-D, etc.)

Extensively adaptable design allows for data signal transmissions from commercial servers to rugged input/output connectors. Reduce high transmission losses caused by long trace lengths on traditional PCBs

Metal backshells optional

Provide 360° Electro Magnetic Interference (EMI) shielding. Reduces crosstalk at the mating interface for improved system performance

Designed to meet VITA standards and data rates up to 25 Gbps

Meets industry standards and a variety of data rate requirements

Extensive engineering design and testing expertise

Ensure the assembly will meet respective application-specified data rates and performance requirements

Positive latch option

Provides intuitive squeeze and pull-latching mechanism, where interface could be maintained through shock and vibration environment

Blindmate capable

Allows misalignment and provides "float" between mating surfaces for easy blind-mate connections
